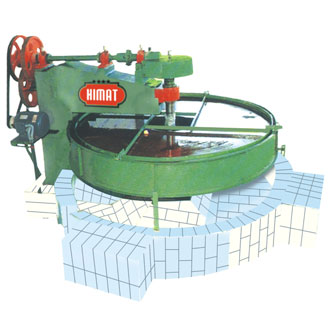

Product - Tiles Grinding Machine (Super Leveling Machine)
Back to Product Category
Model No. CT/05
Catalog Page No.
Cement Tiles Machine
Construction |
: | Main Body Fabricated from Steel Control Shaft is moving on Ball Bearings and thrust Bearings provided on the same Motion to the disc is given through Helical Bevel Gears of Alloy Steel |
Resurfacing Arrangement |
: | Attachment is Provided in the Machine to resurface the disc which operates automatically through Super Gear Train |
Capacity |
: | In Terms of Nos. of Tiles Size : 25 cm x 25 cm at a time For Grinding 28 Tiles at a time |
Plate / Disc Size |
: | 200 cm x 200 cm |
Power Consumption |
: | 5 H.P. 1440 RPM |
Machine Speed |
: | 100 to 110 RPM |
Machine Size |
: | 200 cm x 142 cm x 142 cm |
*Indicative only. Production depends upon the labour efficiency and mix quality. "Higher Tonnages, Brick size as per customer specifications. Standard Brick size is 230 x 110 x 75 mm
Specifications are subject to change for improvement. Specifications, weights, volume are approximate only Manufactures may introduce such alterations as they may deem fit without previous notice. Machines can be supplied as per customer's Specific requirements, Machine capacity mentioned is only for guidance. It will vary with materials.
