Model No. P/03
Catalog Page No.

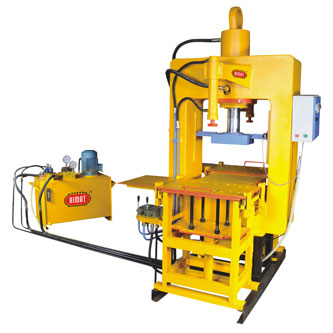

Vibro with High Pressure Paver Block Machine
Maximum Pressure Tonnage |
: | 70 & 90 |
Oil cooling System Facilitate to cool down oil even Press is working |
||
Auto Stop |
||
Safe working conditions with electrical and mechanical interlock systems |
||
Superior Vibration and Pressing systems for maximum compaction and strength |
||
The Pressing operation is time controlled with single switch operation for both pressing and return strokes ensuring uniform pressure on all sides of paver block |
||
Each Paver Machine can give production of 1800 to 2000 nos. Paver Block in 1 shift |
||
Power Required |
: | 6 H.P. |
Manufacturing Capacity |
: | Paver Block 40 mm to 100 mm Kerb Stone 450 mm x 300 mm x 150 mm Railway Crossing Paver & Container Yard Paver |
Oil Tank Capacity |
: | 200 Litres |
Machine Size |
: | Press 150 cm x 135 cm x 245 cm Power Pack 110 cm x 85 cm x 100 cm |
Technical Information
- Piston is Hard Chrome
- Wiper on Cylinder top
- At a time, 4 workers can work
- For removing of Ring, Facility of Hydraulic Stand is available
- It can also Manufacture Chequered Tiles, Elevation Wall Tiles, Cable Tiles
- Paver made will have shining smooth finish
- Pavers mfgd. from our Paver Machine are fitted in Petrol (Fuel) Pump, Railway Plateform, Air Port, Swimming Pool, Garden Resort, General Public Parking Place, Industrial Parking Place, Railway Crossing & Container Yard
- Paver Machine facilitate Mfg. of Paver pc. in two colours : bottom in grey cement material and top pc. (thickness 10 mm) as required/selected by customer. This help cost efficiency of paver
*Indicative only. Production depends upon the labour efficiency and mix quality. "Higher Tonnages, Brick size as per customer specifications. Standard Brick size is 230 x 110 x 75 mm
Specifications are subject to change for improvement. Specifications, weights, volume are approximate only Manufactures may introduce such alterations as they may deem fit without previous notice. Machines can be supplied as per customer's Specific requirements, Machine capacity mentioned is only for guidance. It will vary with materials.
