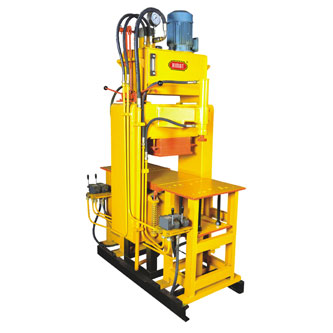

Model No. P/01
Catalog Page No.
Main Features of Interlocking Paver Block Machine
Maximum Pressure Tonnage |
: | 40 |
Manufacturing Capacity |
: | Mosaic Tiles upto 375 mm x 375 mm |
Solid for Manufacturing Capacity of Paver 25 mm to 80 mm |
||
Each Paver Machine can give production of 1400 to 1800 Nos. Paver in 1 shift |
||
Power Required |
: | 5 H.P. |
Oil Tank Capacity |
: | 50 Litres |
Machine Size |
: | 150 cm x 115 cm x 240 cm |
Technical Information
- Piston is Hard Chrome
- Wiper on Cylinder top
- At a time, 4 workers can work
- For removing of Ring, Facility of Hydraulic Stand is available
- It can also Manufacture Chequered Tiles, Elevation Wall Tiles, Cable Tiles
- Paver made will have shining smooth finish
- Pavers mfgd. from our Paver Machine are fitted in Petrol (Fuel) Pump, Railway Plateform, Air Port, Swimming Pool, Garden Resort, General Public Parking Place, Industrial Parking Place, Railway Crossing & Container Yard
- Paver Machine facilitate Mfg. of Paver pc. in two colours : bottom in grey cement material and top pc. (thickness 10 mm) as required/selected by customer. This help cost efficiency of paver
*Indicative only. Production depends upon the labour efficiency and mix quality. "Higher Tonnages, Brick size as per customer specifications. Standard Brick size is 230 x 110 x 75 mm
Specifications are subject to change for improvement. Specifications, weights, volume are approximate only Manufactures may introduce such alterations as they may deem fit without previous notice. Machines can be supplied as per customer's Specific requirements, Machine capacity mentioned is only for guidance. It will vary with materials.
